16x10 Pergola Kits

What Is a 16x10 Pergola?

A 16x10 pergola has a nominal roof footprint measuring 16 feet wide by 10 feet deep, covering 160 square feet in a distinctly rectangular 1.6:1 proportion. Its longer dimension is the organizing feature: rather than creating a nearly square outdoor room, the roof establishes a broad area for dining or conversation while limiting how far the arrangement extends along the shorter axis.

The 160-square-foot measurement describes the horizontal roof footprint, not guaranteed unobstructed space between posts or the amount of shade beneath the roof. Actual furniture placement depends on the selected structure, post positions, roof design, and surrounding site.

How Are Width and Depth Measured?

For an attached 16 ft x 10 ft pergola, the 16-foot width runs along the house or supporting structure, while the 10-foot depth projects outward. This makes the configuration particularly relevant to patios with substantial wall-side length but less available room extending into the yard.

A freestanding pergola is not constrained by that attachment relationship. Its rectangular footprint can be rotated to position the longer side wherever it works best with the patio, furnishings, or surrounding landscape.

Available Styles and Configurations

The 16x10 size is available in traditional and modern slatted-roof pergolas and solid-roof rainproof patio covers. All three families offer four-post freestanding and two-post attached configurations at these dimensions. The frames use aluminum-reinforced structural components with a low-maintenance extruded vinyl exterior.

Slatted models provide a choice of fixed 50%, 75%, or 90% shade coverage, while patio covers use solid polycarbonate panels for rain protection. The differences in roof construction, post placement, and overhang options matter when translating the same roof dimensions into an actual furniture plan.

Is a 16x10 Pergola the Right Size?

The central question is whether your outdoor arrangement benefits more from 16 feet of lateral room than from additional front-to-back space. This footprint is well suited to a broad, unified furniture grouping, especially where the patio is considerably wider than it is deep.

When the 16-Foot Width Makes a Difference

Consider a dining arrangement that follows the long side of the pergola. The 16-foot dimension gives you more room to organize the main table and potentially position a modest serving element nearby, depending on actual furniture dimensions and post placement. The added width can also make an extended conversation grouping feel less compressed along its principal axis.

Compared with a 14x10 pergola, the extra two feet are most valuable when the main arrangement genuinely benefits from additional lateral length. They do not necessarily justify dividing the patio into separate dining and lounge areas. A single generous composition can make more effective use of the elongated roof than two smaller activities competing for the same limited depth.

When Another Proportion Makes More Sense

The 10-foot depth is the main reason to reconsider this size. Opposing furniture pieces, circulation behind a dining arrangement, or multiple layers of furnishings may depend more on depth than on the total roof area. Adding width does not solve a short-axis problem.

If the intended furniture fits comfortably within a shorter lateral span, 14x10 may be sufficient. If an attached patio needs to extend farther outward for a sequence of activities, 10x16 changes the relationship between wall length and projection. Where both dimensions need greater flexibility, 16x12 provides another two feet of depth without changing the width.

Before choosing, outline the actual furniture arrangement within the proposed roof dimensions and identify where people will enter, move around, and approach seating. This is a more reliable test than selecting a pergola based on square footage alone.

What Fits Under a 16x10 Pergola?

The most natural furniture strategy for a 16-foot-wide x 10-foot-deep pergola is to let the long dimension establish the primary arrangement. A wide rectangular dining table or extended sofa-and-chair grouping can follow that direction while the shorter dimension governs how much room remains for approaches, circulation, and opposing pieces.

Planning a Wide Dining Arrangement

A rectangular dining table positioned lengthwise uses the 16-foot axis as its principal dimension. This can be particularly useful when the patio itself follows a long boundary and the dining area should occupy a broad section without projecting too far beyond it.

However, a longer table also requires attention to how chairs move and how people approach the table from its sides and ends. The 10-foot dimension must accommodate the actual table width, chair movement, and intended circulation. A serving console or occasional piece should be included only after confirming that those functions do not interfere with the primary arrangement.

Planning an Extended Lounge Grouping

A sofa-and-chair arrangement can also take advantage of the wide footprint. Rather than organizing several separate seating clusters, consider one connected conversation area that extends across the long dimension, with chairs positioned to maintain the intended social relationship.

The exact placement depends on the depth of the furniture and whether pieces face one another, sit at angles, or share a common orientation. The 16-foot length offers lateral choices, but the 10-foot depth can still restrict opposing arrangements. If a substantial dining area and separate lounge are both essential, evaluate a deeper footprint such as 16x12 instead of assuming the 160-square-foot roof supports both comfortably.

A useful approach is to draw the furniture at its actual dimensions, including its occupied space during use, then overlay the intended post positions. This identifies conflicts that a simple roof-outline sketch may miss.

Where Does a 16x10 Pergola Work Best?

A wide patio edge is a natural setting for this footprint. The 16-foot dimension can follow an extended boundary while the 10-foot dimension limits how much of the adjoining outdoor space the roof occupies. This relationship is especially useful when the furniture itself is arranged laterally.

Patios with More Width Than Depth

A long terrace, broad patio, or similarly proportioned deck may have enough lateral room for a 16-foot roof without benefiting from a much deeper structure. In these situations, the pergola can define one substantial outdoor activity area while leaving the surrounding site available for other uses.

Measure the proposed roof outline against the actual patio rather than assuming the nominal dimensions correspond to its usable surface. Nearby steps, planting beds, pathways, and other fixed features can influence whether the roof and supporting posts fit the intended position.

Orienting the Pergola Around the Site

For a freestanding installation, the longer side can be aligned with the furniture grouping, a patio boundary, or another important site feature. Rotating the same rectangle changes its relationship to surrounding elements without changing its physical area.

Consider how people enter and leave the covered space, whether posts interrupt intended movement, and how the roof interacts with nearby structures. Shade behavior should also be assessed for the specific site and roof configuration rather than assumed from the footprint alone.

Where available projection is especially restricted, a 16x8 pergola offers a shallower alternative. The 16x10 adds two feet of depth, which can make a meaningful difference when the furniture needs more front-to-back room.

Design & Installation Considerations

The same nominal 16x10 roof can create different planning conditions depending on whether it attaches to a structure or stands independently. Style selection also matters because post placement and overhang choices affect how the roof footprint relates to the furniture beneath it.

Attached: 16 Feet Along the Structure

With an attached 16x10 pergola, the width extends 16 feet along the supporting structure and the depth projects 10 feet outward. This favors an arrangement that spreads laterally across the patio rather than extending deeply into the yard.

If the project calls for dining followed by a serving area or another activity positioned farther from the house, the rotated 10x16 attached orientation may be more appropriate. It uses a shorter wall-side dimension and projects farther outward. The difference is directional, not a difference in total roof area.

Any attached installation also requires evaluation of the actual building and intended mounting location. The stated dimensions alone do not establish attachment suitability.

Freestanding: Rotate the Rectangle to Suit the Layout

Freestanding 16x10 and 10x16 pergolas describe the same physical rectangle after a 90-degree rotation. Neither orientation inherently provides more room for furniture. What changes is the direction of the long axis relative to the patio, furniture, circulation, and surrounding features.

A four-post freestanding configuration can therefore be positioned with its long side following the main seating arrangement or another useful site direction. Evaluate the actual post locations and access routes before settling on the orientation.

Posts, Overhangs, and Roof Design

A traditional pergola allows posts at the corners or inset up to 36 inches, with beam and rafter overhang options from 0 to 36 inches. These choices can change where the support line falls relative to the nominal roof outline. They should be considered when planning furniture placement and circulation.

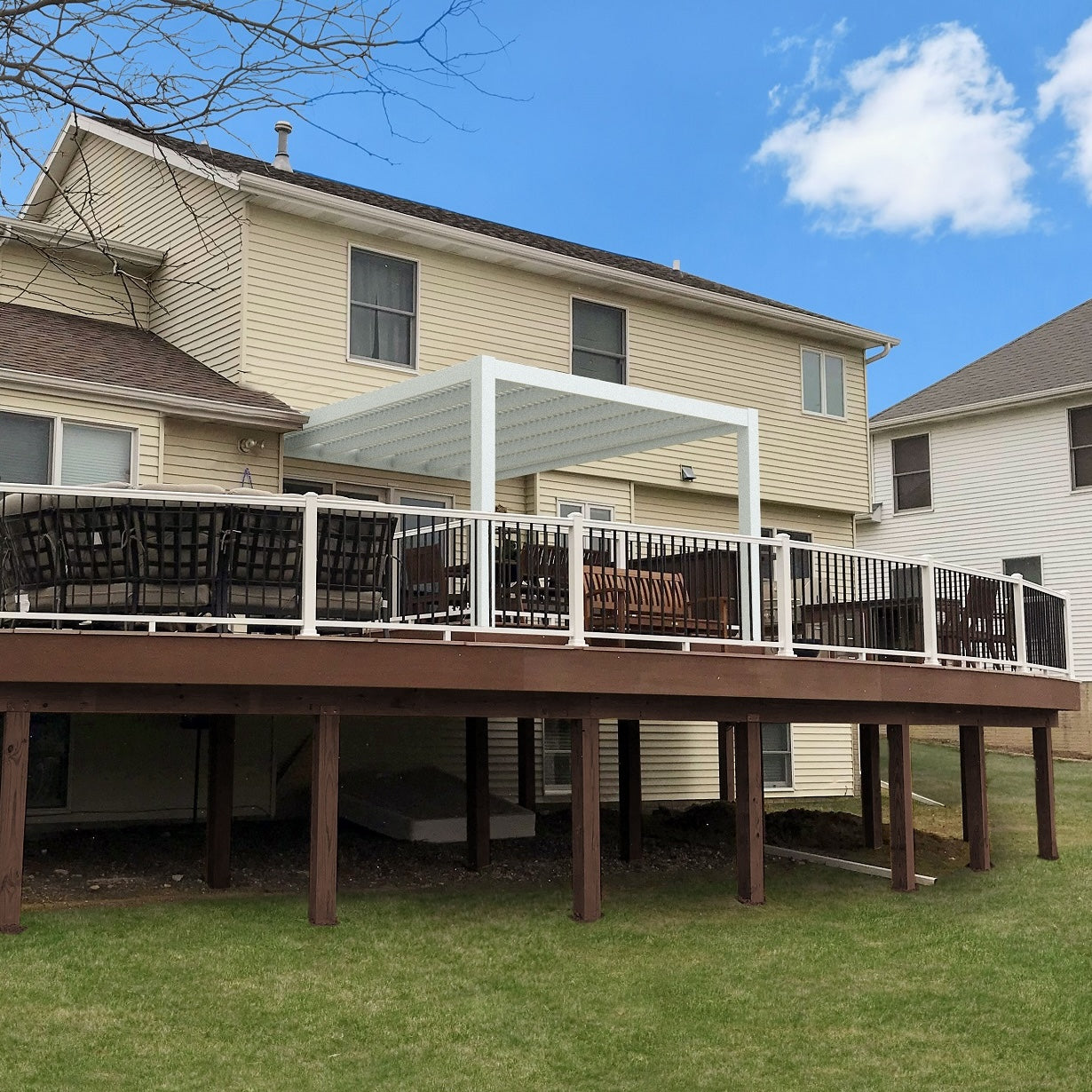

A modern pergola has corner-positioned posts and a flush design without beam or rafter overhangs. At 16x10, this creates a more directly defined relationship between the roof perimeter and the supporting-post footprint, although actual usable space must still be assessed.

Rainproof patio covers offer solid polycarbonate roofing with optional overhangs up to 24 inches and posts that may be inset up to 24 inches. Their post and roof-outline relationships should be reviewed separately from those of slatted pergolas.

For slatted designs, consider the fixed roof-slat arrangement and site-specific sun conditions when choosing shade coverage. A solid-roof patio cover addresses a different need by providing rain protection. Neither roof selection changes the basic 16-foot by 10-foot dimensional planning problem.

16x10 Pergola vs Similar Sizes

Comparing nearby footprints reveals whether the project primarily needs additional width, additional depth, or a different orientation. The following covered-area figures represent nominal horizontal roof footprints, not guaranteed clear floor space or actual shade coverage.

Choosing Between Narrower and Wider Footprints

The 14x10, 16x10, and 18x10 sizes all maintain a 10-foot depth. Moving from one to the next adds lateral length, not additional front-to-back flexibility. This makes the choice relatively straightforward: determine how much width the main furniture grouping and any genuinely useful side placement require.

The 16x10 occupies the middle of this progression. It provides 20 more square feet than 14x10, but avoids the additional roof length of 18x10 when a still-longer arrangement is unnecessary. If the intended furniture already works within 14 feet, the extra width may offer little practical benefit.

Choosing Between Different Depths and Orientations

The 10x16 comparison matters most for attached pergolas. Its 16-foot projection changes how activities can be organized away from the building, whereas the 16x10 spreads the roof across a wider section of the wall. Freestanding versions are rotationally equivalent and should be evaluated according to site orientation rather than assumed differences in capacity.

The 16x12 is a different decision. It retains the 16-foot width while adding two feet to the controlling dimension, providing more flexibility for opposing pieces, deeper circulation arrangements, or related dining and lounge functions. The tradeoff is a larger footprint extending farther into the available outdoor space.

Choose based on the dimension that actually limits the intended layout. More nominal area is useful only when it appears along the axis where additional room is needed.

Choosing the Right 16x10 Pergola

Once the 16-foot by 10-foot footprint suits the site, the remaining decisions concern the roof, frame appearance, installation type, and supporting-post arrangement. Each should be considered against the same furniture plan rather than treated as an independent decorative choice.

Selecting the Roof and Frame Style

Choose a traditional pergola when adjustable post insets, optional overhangs, and decorative end treatments are important to the design. A modern pergola offers a flush roof outline with corner posts and no optional inset positioning.

Both slatted styles provide fixed shade options of 50%, 75%, or 90%. If rain protection is a primary requirement, consider a rainproof patio cover with solid polycarbonate roof panels instead. Roof behavior should be chosen according to the intended use, not simply by selecting the highest shade percentage.

All applicable styles use aluminum-reinforced construction with a low-maintenance vinyl exterior. White, tan, and black frame colors are available, allowing the selected structure to relate to the surrounding property.

Confirming Installation and Final Size

Decide whether the pergola should be attached along a 16-foot section of the structure or freestanding in the desired patio location. Then verify the intended post positions, any selected overhangs, and the furniture arrangement together.

The final size check should focus on the 10-foot depth. If that dimension accommodates the intended dining or lounge arrangement and its circulation needs, the 16-foot width can provide a useful extended single-zone layout. If the plan requires substantial opposing furniture, deeper movement paths, or separate activities, reconsider the footprint before finalizing the roof and frame options.
