28x18 Pergola Kits

What Is a 28x18 Pergola?

A 28x18 pergola measures 28 feet wide by 18 feet deep, creating a rectangular roof footprint of 504 square feet. Its approximately 1.56:1 length-to-depth ratio gives it a broad character without the pronounced linearity of a shallower structure. The result is a substantial outdoor living footprint that favors multiple connected activities arranged across its width.

How Large Is the 28x18 Footprint?

The 28-foot dimension provides the primary opportunity to arrange dining, conversation, and serving areas alongside one another. The 18-foot dimension provides meaningful room to develop those activities inward from the perimeter rather than limiting them to a narrow band of furniture.

The 504-square-foot measurement represents the nominal horizontal roof footprint. It does not establish unobstructed floor area, actual shade coverage, or usable space between posts. Those considerations depend on the selected pergola configuration and the arrangement beneath it.

Which Styles and Installations Are Available?

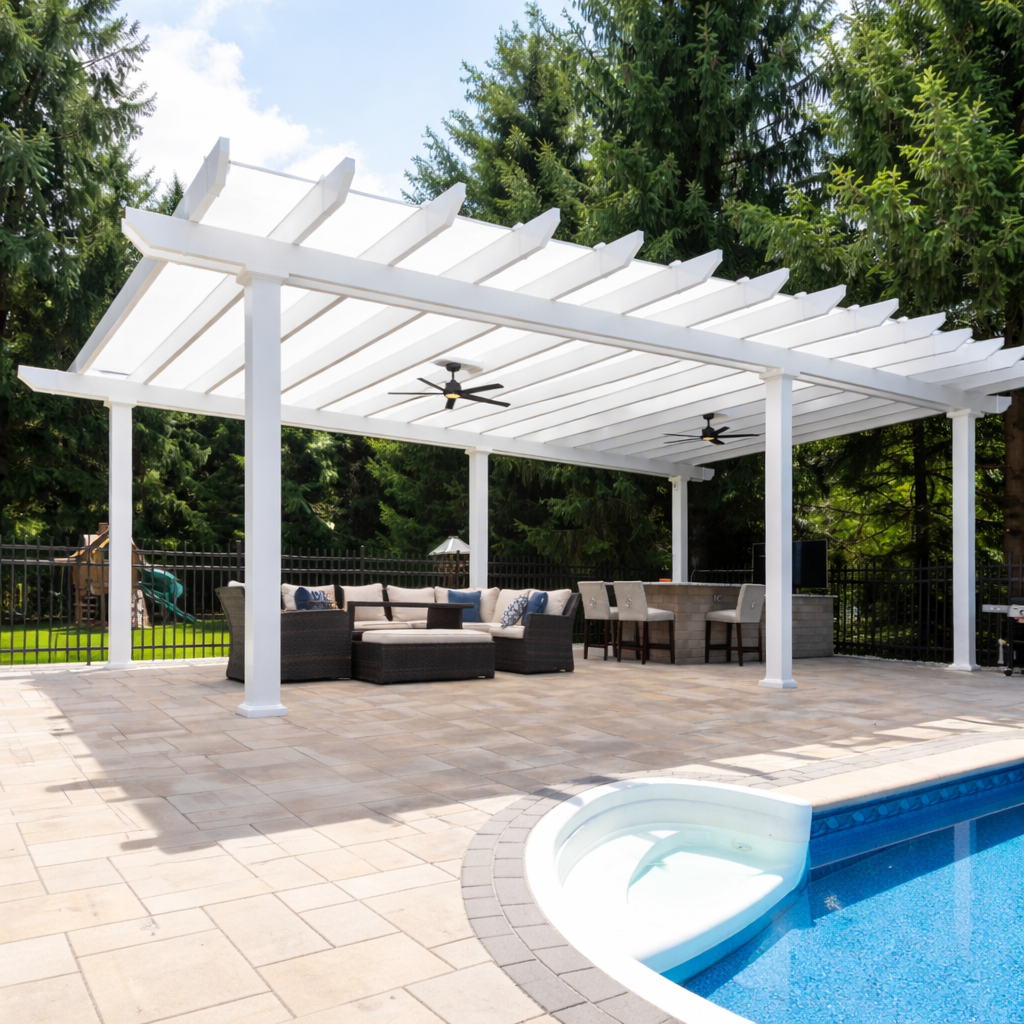

At 28x18, traditional pergolas are available with six posts freestanding or three posts attached. Modern pergolas use nine posts freestanding or six posts attached. Rainproof patio covers are offered with six posts freestanding or three posts attached. These attached configurations use the 28-foot dimension along the supporting structure.

The available designs differ in roof construction, post geometry, and visual treatment, making configuration an important part of choosing this footprint.

Is a 28x18 Pergola the Right Size?

The strongest reason to choose 28x18 is the combination of extensive lateral room and substantial depth. It suits an outdoor plan where several developed activities should remain connected rather than occupy separate structures or isolated corners.

When Does This Proportion Make Sense?

Consider a patio where a substantial dining arrangement occupies one portion, a conversation grouping another, and a serving function connects them. The 28-foot width supports this broad relationship, while the 18-foot depth gives each grouping room to develop inward instead of becoming a single row along the long axis.

This proportion is particularly useful when the activities should remain visually connected. It is less naturally suited to a plan whose main objective is to concentrate every activity around one central gathering point.

When Would a Different Size Be Better?

If the width is important but the site does not benefit from 18 feet of depth, a 28x16 pergola preserves the broad dimension with a shallower profile. The additional two feet of depth in 28x18 matters most when it improves the arrangement and circulation within existing activity zones.

If 18 feet of depth is appropriate but 28 feet of width spreads activities farther apart than desired, 24x18 may be more suitable. A more balanced, less elongated footprint may also better support a centralized gathering arrangement.

The decision should begin with the relationships among furniture, circulation, and surrounding features rather than an assumption that the largest available footprint is automatically preferable.

What Fits Under a 28x18 Pergola?

A 28x18 pergola can provide a framework for large dining and conversation groupings with a nearby kitchen or serving function. The advantage is not a guaranteed number of furniture pieces, but the opportunity to organize substantial activities into a connected outdoor environment.

Arranging Dining and Conversation Areas

One approach places dining toward one side of the 28-foot dimension and conversation seating toward the other. This creates distinct destinations while keeping movement between them relatively direct. The groupings can face inward toward their own focal points rather than functioning as furniture lined up along a long edge.

The 18-foot depth is particularly valuable here. Compared with 28x16, it adds room for front-to-back development within the same lateral zones. That can improve the completeness of a dining or conversation arrangement without requiring another activity to fill the extra space.

Furniture orientation should establish the relationship between the zones. Leaving deliberate open areas between groupings can make the plan more coherent than attempting to occupy every portion of the roof footprint.

Incorporating a Kitchen or Serving Area

A kitchen or serving function can occupy part of the broad arrangement, positioned to support dining without interrupting the conversation area. It might serve as a connecting element between the two larger groupings rather than becoming an entirely separate destination.

Its precise placement depends on the equipment, access requirements, utilities, and relationship to the house or other outdoor features. The 28-foot width offers choices for adjacency, but the layout must still account for posts, circulation, and any equipment-specific clearance requirements.

A successful plan uses the breadth to organize related functions and the depth to make those functions comfortable to use. It does not depend on maximizing the number of furnishings beneath the pergola.

Where Does a 28x18 Pergola Work Best?

The 28x18 footprint works especially well where a site can make meaningful use of both its broad dimension and its considerable depth. It is a natural candidate for an expansive patio intended to connect multiple outdoor activities without dividing them into completely independent spaces.

Broad Patios and Connected Outdoor Living

An expansive panoramic patio is one possible setting. The 28-foot dimension can relate to a broad outdoor environment, while the 18-foot depth allows seating and dining to extend inward from the patio perimeter.

However, the long side does not necessarily need to face a view. The same rectangle can organize activities alongside a building, across an open terrace, or in a freestanding outdoor gathering area. What matters is whether the site benefits from the combination of lateral adjacency and meaningful front-to-back use.

Working With Surrounding Features

Consider how people will enter the pergola area, move between activities, and reach nearby features. A wide arrangement may connect naturally to several access points, but poorly placed furniture can still create indirect routes or unused gaps.

The surrounding landscape, building openings, patio edges, and existing circulation patterns should help determine where the major groupings belong. A 28x18 structure is most effective when those relationships reinforce the broad connected plan rather than forcing unrelated activities into one footprint.

Before selecting the location, outline the intended roof footprint and the approximate furniture groupings on the actual site. This helps reveal whether the 28-foot breadth serves a real planning purpose and whether the full 18-foot depth can be used meaningfully.

Design & Installation Considerations

At 28x18, the selected design and installation method influence how the broad rectangle relates to surrounding space. Post configurations, roof edges, and attachment orientation deserve attention before furniture locations are finalized.

Attached Versus Freestanding Orientation

For an attached 28x18 pergola, the 28-foot width runs along the supporting structure and the 18-foot depth projects outward. This makes the footprint directional: the available configurations described here specifically use that attachment orientation.

A freestanding 28x18 pergola can be rotated 90 degrees relative to the site without changing its physical dimensions or nominal area. Rotation changes how the long and short sides relate to entrances, views, nearby features, and circulation, not the inherent capacity of the rectangle.

Homeowners considering an independent structure can review freestanding pergola configurations, while those extending an existing outdoor area can examine attached pergola options.

Post Placement, Overhangs, and Furniture Boundaries

Traditional 28x18 pergolas use six posts freestanding or three posts attached. Their posts may be positioned at the corners or inset within the permitted limits, and their beams and rafters can incorporate overhangs of up to 36 inches. These choices affect the relationship between the roof outline and the supported area beneath it.

Rainproof patio covers also offer optional inset posts, with a maximum 24-inch inset and up to 24-inch overhangs. Modern pergolas instead have flush roof edges, corner posts, and no optional inset-post positioning. At this size, they also require additional supports: nine posts freestanding or six posts attached.

These differences matter when placing furniture near the edges or arranging movement between zones. The nominal roof dimensions should not be treated as measurements of clear space between posts. Confirm the selected configuration's post arrangement before finalizing the furniture plan.

Roof Design and Sun Exposure

Traditional and modern pergolas use fixed angled roof slats, with available 50%, 75%, and 90% shade-coverage configurations. The appropriate choice depends on the desired amount of overhead coverage and the site's sun conditions. These slatted roofs do not provide rain protection.

A rainproof patio cover uses solid polycarbonate panels instead. Its roof is designed to protect the area beneath from rain, although the practical protected area still depends on roof geometry and weather conditions.

Because sunlight changes with season, time of day, and orientation, no single compass alignment guarantees a particular shaded furniture arrangement. Consider the site's actual sun exposure alongside the planned location of each activity.

28x18 Pergola vs Similar Sizes

Nearby dimensions change how outdoor activities relate to one another, even when the overall shape remains rectangular. The most useful comparisons isolate width and depth separately so the additional space has a clear planning purpose.

All covered-area figures represent nominal horizontal roof footprints, not guaranteed unobstructed floor space, actual shade, or rain-protected area.

Keeping the 28-Foot Width

The distinction between 28x16, 28x18, and 28x20 is entirely in depth. Moving from 16 to 18 feet adds 56 nominal square feet, but the more important consequence may be greater room to develop the same dining and conversation zones inward.

Moving from 18 to 20 feet adds another 56 square feet and offers additional front-to-back flexibility. That extra depth is worthwhile when the planned furniture or circulation benefits from it, rather than simply because more area is available.

Keeping the 18-Foot Depth

With depth held constant, the choice between 24, 28, and 32 feet of width concerns lateral reach. The 28x18 footprint provides more room to distribute adjacent activities than 24x18, while keeping the outer groupings closer together than a 32-foot-wide arrangement.

The right width depends on whether the outdoor program genuinely needs additional frontage. For a centralized multi-zone experience rather than a broad sequence of related activities, a more balanced footprint may be preferable even if it offers a different total area.

Choosing the Right 28x18 Pergola

Once the 28-foot width and 18-foot depth fit the intended outdoor arrangement, the remaining decision is how the structure should function. Roof coverage, installation relationship, and post geometry are more useful selection criteria than appearance alone.

Choosing Between Slatted Shade and a Solid Roof

For overhead shade with an open slatted appearance, consider traditional pergola designs or modern pergola designs. Both offer fixed slats with three shade-coverage choices, but their roof edges and support arrangements differ substantially at 28x18.

If rain protection is an essential part of the intended outdoor use, choose from the rainproof patio covers. These use solid white or bronze polycarbonate roof panels rather than slats. The frame carries a lifetime warranty, while the roof has a 10-year warranty.

Choosing the Installation Relationship

An attached configuration is appropriate when the 28-foot dimension should run along a suitable supporting structure and the roof should project 18 feet outward. A freestanding configuration offers more flexibility in locating and rotating the rectangle relative to existing outdoor features.

In either case, confirm the required supports and their relationship to furniture before treating the layout as finalized. The differences between traditional, modern, and patio-cover post arrangements can influence the practical organization of the same nominal footprint.

Confirming the Final Dimensions

Before selecting 28x18, ask whether the planned zones need the full 28-foot breadth and whether 18 feet provides sufficient depth for their inward-facing arrangements. If the width works but the furniture plan is shallow, less depth may be appropriate; if several zones need additional front-to-back room, greater depth may be justified.

Likewise, reduce the width when activities benefit from closer proximity, or increase it when a genuinely larger lateral program requires more frontage. The best 28x18 layout is one in which both dimensions contribute to the intended outdoor experience.
