12x16 Pergola Kits

What Is a 12x16 Pergola?

A 12x16 pergola has a nominal roof footprint measuring 12 feet wide by 16 feet deep, totaling 192 square feet. Its 1.33:1 long-to-short ratio creates a moderately rectangular outdoor space: long enough to organize related activities from one end to the other, but not so elongated that it naturally divides into two independent outdoor rooms.

How Are the 12-Foot Width and 16-Foot Depth Measured?

Width describes the 12-foot dimension across the roof, while depth describes the 16-foot dimension running perpendicular to it. On an attached pergola, the 12-foot width runs along the house or supporting structure and the 16-foot depth projects outward. A freestanding pergola can be oriented either way to suit the site.

The 192-square-foot figure represents nominal horizontal roof-footprint area. It does not establish the unobstructed space between posts, actual shaded area, or furniture clearances. Those considerations depend on the selected configuration and placement.

Which 12x16 Pergola Configurations Are Available?

The standard 12x16 kit is available in traditional and modern slatted-roof styles and as a rainproof patio cover. All three families offer four-post freestanding and two-post attached configurations at this size. The modern design reaches its stated maximum standard depth of 16 feet, while traditional pergolas and patio covers offer additional flexibility in roof-edge and post-positioning options.

Is a 12x16 Pergola the Right Size?

The defining advantage of a 12x16 pergola is the additional length available beyond a principal furniture grouping. With 192 square feet distributed across a 12-foot width and 16-foot depth, it can support a recognizable secondary activity area without requiring the broader footprint of a more square-shaped outdoor room.

Who Benefits From the Added 16-Foot Depth?

Homeowners who want dining to remain the main activity while introducing a smaller conversation spot can make particularly effective use of these proportions. Rather than expanding furniture equally in every direction, the 16-foot dimension allows the layout to develop lengthwise: a primary dining grouping followed by a pair of lounge chairs.

That distinction matters when comparing this footprint with a 12x14 pergola. The shallower size is more naturally organized around one flexible furniture arrangement with an accent or supporting piece. The extra two feet of depth in a 12x16 creates an opportunity for a compact secondary grouping that feels intentional rather than incidental.

When Is a Different Footprint More Suitable?

The 12-foot width remains the controlling dimension when furniture needs to spread sideways. A 14x16 pergola adds two feet across that axis, providing greater freedom for arranging dining and conversation furniture without concentrating nearly all of the additional room in length.

A 14x14 footprint is another consideration when a more balanced arrangement matters more than a dining-to-lounge sequence. Conversely, a narrower 10x16 may suit a site where width is restricted and the plan centers on dining followed by a simpler serving area.

Choose 12x16 when the site accommodates its longer dimension and the intended activities have a clear hierarchy. If the goal is two equally substantial outdoor furniture zones, the nominal square footage alone should not be treated as evidence that both will fit comfortably.

What Fits Under a 12x16 Pergola?

A useful starting point for a 12 x 16 pergola is a dining table occupying the principal portion of the footprint, with two lounge chairs grouped toward one end. This arrangement uses the longer axis to distinguish activities while keeping the secondary seating visually connected to the dining area.

How Can Dining and Lounging Share the Footprint?

Begin with the dining arrangement rather than dividing the rectangle into equal halves. Its table, chairs, and associated movement establish the main functional area. The remaining length can then be evaluated for a small lounge grouping that does not interrupt movement between the two activities.

For example, two lounge chairs placed together at the far end can create a separate place to sit without suggesting a fully developed second living room. Their exact position should respond to the selected furniture, nearby access routes, and pergola posts rather than an assumed amount of unobstructed floor space.

The important advantage is not simply accommodating more individual pieces. It is allowing the homeowner to distinguish dining from relaxed seating while maintaining a coherent relationship between them.

How Large Should the Secondary Lounge Be?

Keep the lounge deliberately subordinate to the dining arrangement. A compact chair grouping generally aligns more naturally with the 12-foot cross-axis than trying to furnish both ends with equally substantial tables, sofas, and chairs.

Overfilling both ends is a common planning mistake with moderately rectangular footprints. Although 192 square feet may sound generous, the added area is concentrated along the 16-foot dimension. Large furniture at both ends can compete for the same circulation space and make the arrangement feel crowded.

If the secondary grouping needs a sofa-and-chairs arrangement with stronger end-to-end separation, a deeper 12x18 footprint deserves consideration. If broader furniture placement is the primary concern, additional width may solve the problem more effectively than additional depth.

Before settling on the layout, mark the intended furniture footprints and movement paths on the actual patio. This helps distinguish a practical dining-plus-lounge plan from an arrangement that looks plausible only when the furniture is represented as undersized shapes.

Where Does a 12x16 Pergola Work Best?

A 12-foot-wide by 16-foot-deep pergola works particularly well where the outdoor area has enough length for a primary activity and a smaller destination beyond it. The rectangle provides more longitudinal organization than a near-square plan without demanding a particularly broad 14- or 16-foot cross-axis.

What Site Shape Suits These Proportions?

A dining patio with a lounge end illustrates the footprint's strengths. The dining grouping occupies the main portion, while the remaining depth creates a place for two chairs that belong to the same overall outdoor setting.

This arrangement can also work in other outdoor spaces where the available dimensions and intended furniture sequence align. What matters is having enough room for the full roof footprint and a workable relationship between furniture, posts, and the surrounding site.

A site that is relatively wide but shallow may be less compatible with a 16-foot projection. In that situation, a rotated orientation or a different footprint can make better use of the available space.

How Should Nearby Features Influence Orientation?

Consider where people will enter the area, which routes must remain open, and whether existing doors or landscape features influence furniture placement. The dining area should not force people to pass awkwardly through the lounge grouping, and the lounge should not occupy a route needed for everyday access.

Nearby views or features may also suggest which end should receive the secondary chairs. These are site-specific decisions rather than inherent advantages of a particular compass direction.

For an attached installation, remember that the 16-foot dimension extends outward from the supporting structure. Confirm that this projection fits the intended patio and its surroundings before treating the furniture arrangement as final.

Design & Installation Considerations

The same 12x16 roof dimensions can interact differently with a property depending on installation type, post arrangement, roof style, and orientation. These decisions influence how the rectangular footprint is experienced even though its nominal area remains 192 square feet.

How Does Attached Orientation Change the Plan?

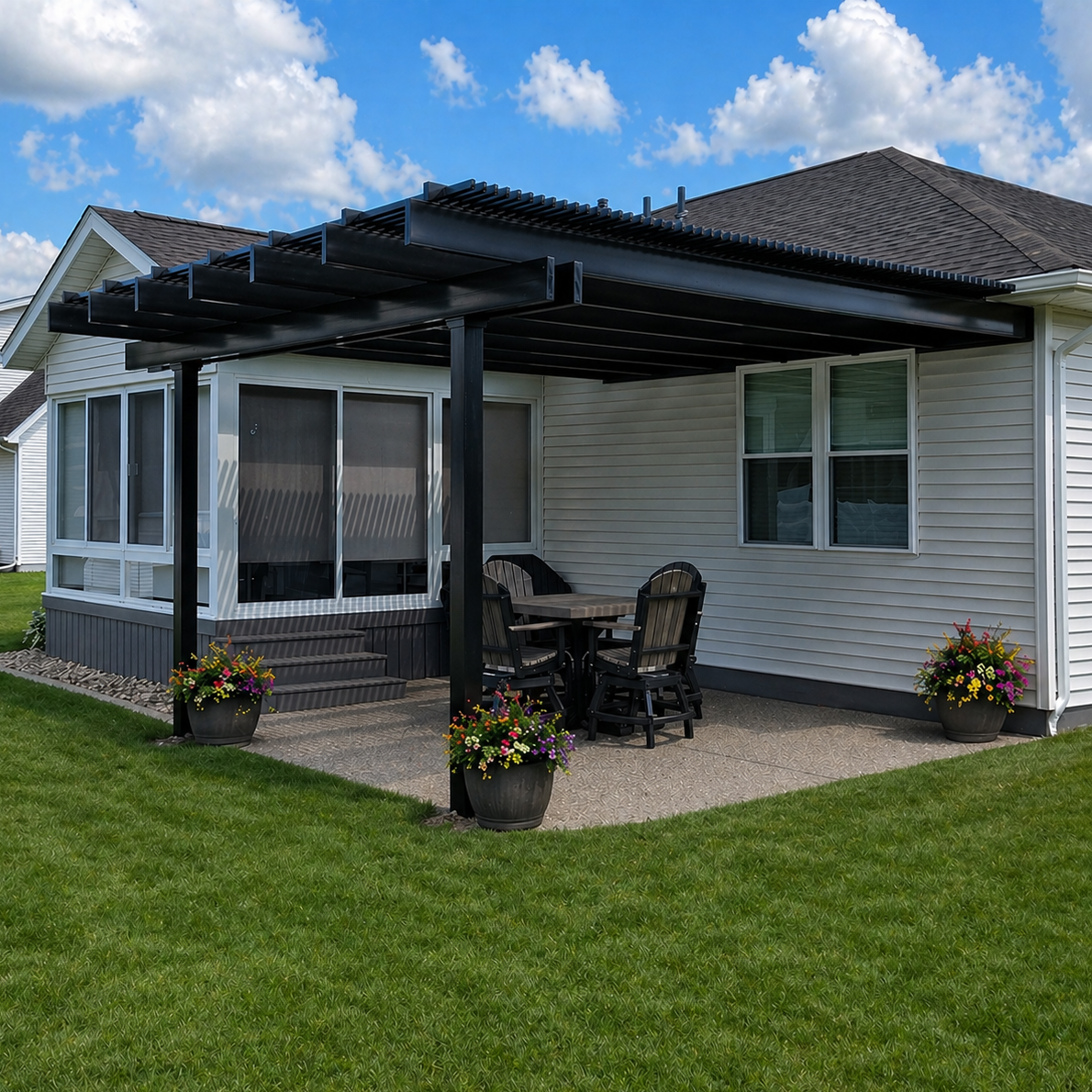

With an attached pergola, the 12-foot width runs along the house or supporting structure and the 16-foot depth projects outward. This creates a relatively focused frontage with a longer outdoor extension, making lengthwise organization a natural starting point.

That relationship is important when planning furniture around doors, windows, and nearby circulation. A homeowner seeking more room along the house rather than farther into the yard may prefer a 16x12 orientation instead.

What Changes When a Freestanding Rectangle Is Rotated?

For a freestanding pergola, 12x16 and 16x12 describe the same physical rectangle after a 90-degree rotation. Neither orientation inherently provides more floor area or greater furniture capacity.

Rotation changes how the long and short axes relate to the property. One orientation may place the longer side alongside an existing patio edge, while the other may align it with a route or activity sequence. The appropriate choice depends on the measured site and how people will use it.

How Do Posts, Roof Edges, and Roof Style Affect Placement?

In a traditional 12x16 pergola, optional beam and rafter overhangs of up to 36 inches and inset-post positioning can change the relationship between the roof perimeter and the supporting posts. Rainproof patio covers offer similar design flexibility with overhangs up to 24 inches and post insets up to 24 inches. These choices should be considered when locating furniture near the edges.

A modern 12x16 pergola instead uses a flush-edge design with corner posts and no optional post insets or roof overhangs. Its more explicitly defined rectangle may appeal to homeowners who want the roof outline and supporting structure to have a straightforward visual relationship.

Traditional and modern pergolas use fixed angled slats, with selectable 50%, 75%, or 90% shade coverage. Actual shade location and behavior vary with sun angle, orientation, and time of day. A solid-roof patio cover provides rain protection instead of the open slatted-roof experience.

Whichever configuration is selected, use the actual product layout and site measurements when evaluating post locations, furniture boundaries, and access. The nominal roof dimensions alone cannot establish those clearances.

12x16 Pergola vs Similar Sizes

Nearby pergola sizes can have similar overall areas while supporting noticeably different arrangements. The most useful comparison is whether additional dimensions are gained across the width, along the depth, or through a change in orientation.

All covered-area figures above are nominal horizontal roof-footprint measurements, not guaranteed usable interior space or actual shade coverage.

What Changes With Two Fewer or Additional Feet of Depth?

Moving from 12x14 to 12x16 creates a meaningful opportunity to establish a small lounge end beyond the main dining arrangement. Moving from 12x16 to 12x18 extends that sequence further, making it more practical to distinguish two developed activities rather than treating the secondary seating as a modest extension of dining.

The width remains 12 feet in all three cases. More depth does not automatically solve furniture arrangements that require additional sideways room.

Is Added Width More Useful Than Added Depth?

Added width is especially relevant when the intended furniture is broad, when movement needs to occur beside a grouping, or when the arrangement should feel less directional. Added depth is more useful when activities can be organized one after another.

For the 12x16 footprint, the key decision is whether the 16-foot length provides enough differentiation without needing the broader cross-axis of a 14x16. When both groups need substantial sideways flexibility, the wider alternative changes the layout more directly than simply extending the rectangle.

Choosing the Right 12x16 Pergola

Once the 12-foot width and 16-foot depth fit the intended site, the remaining decisions concern roof protection, architectural appearance, and how the structure will be positioned. The best configuration is the one that supports the actual furniture arrangement and intended use rather than simply matching the nominal area.

Which Pergola Style Matches the Intended Use?

A traditional pergola provides a slatted shade roof with optional decorative end caps, overhangs, and inset posts. These choices can be useful when the roof outline and post positions are important parts of the patio design.

A modern pergola provides the same available slatted shade-coverage choices in a contemporary flush-edge form. At 12x16, its four-post freestanding and two-post attached configurations retain the corner-post arrangement without optional overhangs.

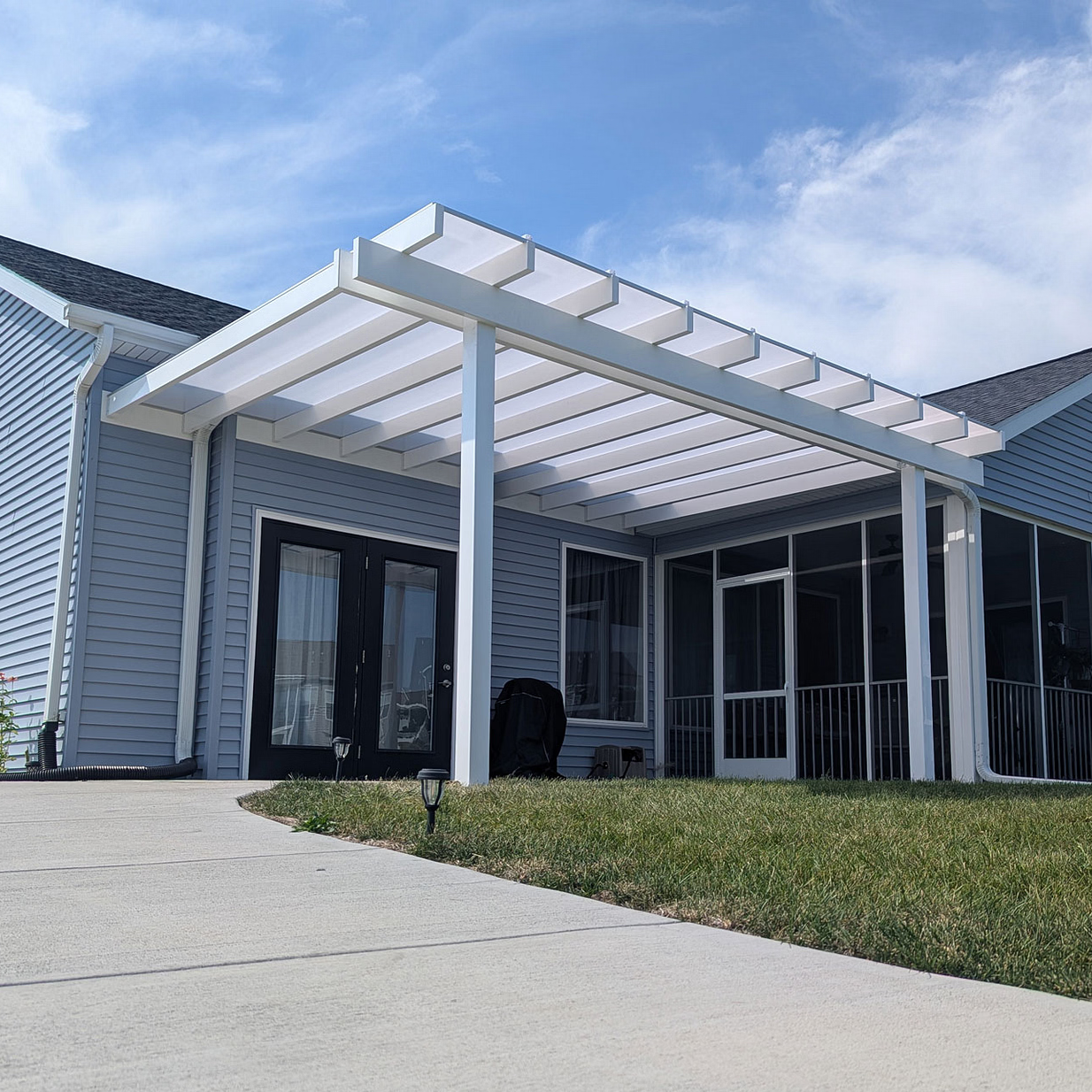

For dining areas where protection from rainfall is an important requirement, a rainproof patio cover uses solid polycarbonate roof panels rather than open slats. White and bronze roof-panel options are available, along with the applicable frame and post choices.

Should the Structure Be Attached or Freestanding?

An attached 12x16 configuration establishes a fixed relationship to the supporting structure: 12 feet along it and 16 feet outward. A freestanding four-post configuration allows the rectangle to be positioned and rotated independently, subject to the site and installation requirements.

For either approach, evaluate the furniture arrangement against the selected post configuration rather than assuming the entire roof footprint is unobstructed.

Is 12x16 Still the Right Footprint After Layout Planning?

Confirm that the full roof dimensions fit the intended location, then test a dining-first arrangement with a compact lounge grouping at one end. If the secondary chairs feel crowded, determine whether the limitation is the available depth, the 12-foot width, or the position of surrounding features.

If the proportions support that arrangement, 12x16 offers a practical middle ground between a primarily single-zone patio and a more extensively divided outdoor setting. The final selection should then reflect whether slatted shade or a solid rainproof roof better matches the intended use.
